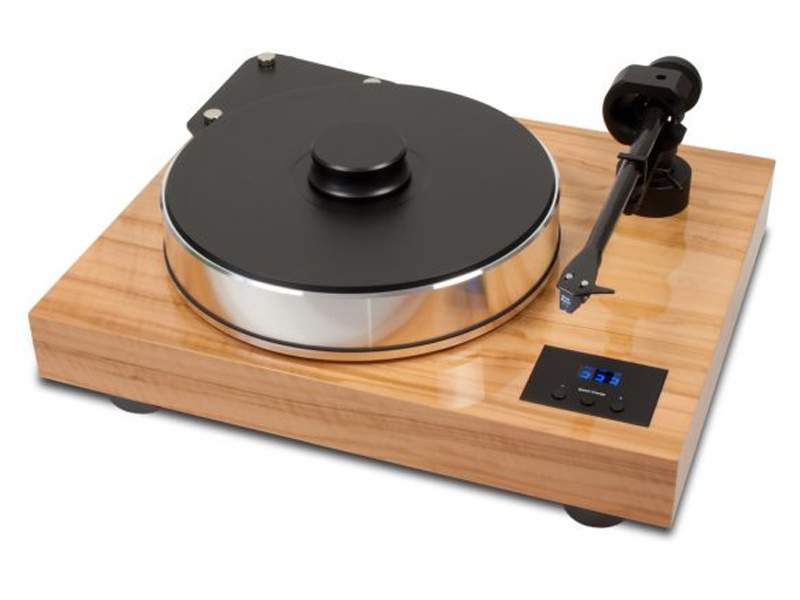

Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Olive - PJ35829436
Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Olive - PJ35829436
Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Piano -PJ35829405
Project Audio Xtension 10 Evolution High-end Turntable with 10 Inch Tonearm - PJ97823229
Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Walnut -PJ50431218
Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Palisander -PJ50431201
Project Audio Highend turntable with 10“ tonearm - Xtension 10 Evolution - Mahogany- PJ35829467
You may also like
The little brother of Xtension guarantees superlative vinyl performance in a more compact size!
Xtension 10 Evolution is ideal for all, who look for sound quality of standard Xtension in a more compact size below 48cm width, to fit standard audio racks. It incorporates all of our 20 years experience in turntable design. Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.
Instead of the old standard adoption of pure metal used for the main platter, we’ve found a perfect alloy which we damped on the inner side with Sorbothane®. Additionally we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultrasilently on an inverted ceramic ball bearing with magnetic suspension.
The Pro-Ject 10cc Evolution with its tonearm base also benefits from ‘high-mass’ technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14 Grams. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in high gloss lacquer finishes: mahogany, piano and olive.
XLR Option
Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in highend vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.
The editions walnut and palisander are available on request.
Features
- Super-heavy 22 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- Extremely low level of natural resonance
- Perfect decoupling through magnetic feet
- Electronic speed control 33/45/78 Upm
- Tonearm 10cc Evolution made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
- Dust cover included
Specifications | |
---|---|
Speed | 33, 45, 78 (electronic speed change) |
Principle | Belt drive |
Platter | 300 mm aluminium (TPE damped) |
Main bearing | Inverted stainless steel with ceramic ball with antimagnetic support |
Wow & flutter | ± 0.01% (max) |
Speed variance | ± 0.09% (max) |
Signal to Noise | 73 dB |
Tonearm | 10” cc EVO, Carbon |
Effective arm length | 254 mm |
Effective tonearmmass | 8.5 g |
Overhang | 16.0 mm |
Tracking force range | 10 - 30 mN |
Cartridge weight range | 4 - 14 g (4 different counterweights included) |
Included accessory | Power supply, dust cover |
Power consumption | 15 Watts max / < 1 Watt standby |
Dimensions | 480 x 235 x 400 mm (WxHxD) |
Weight | 18 kg net |
