Revel 8 Inch 2-Way Flush-Mount Extreme Climate Loudspeaker - W763

SKU : W763

This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

W763 Highlights

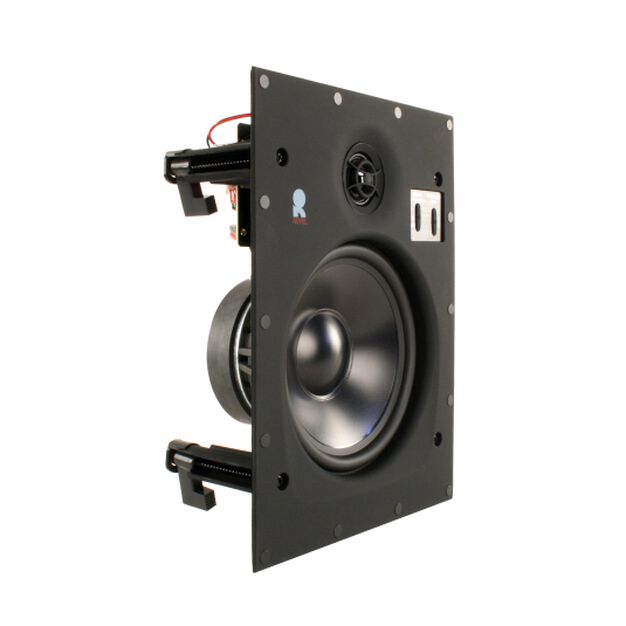

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

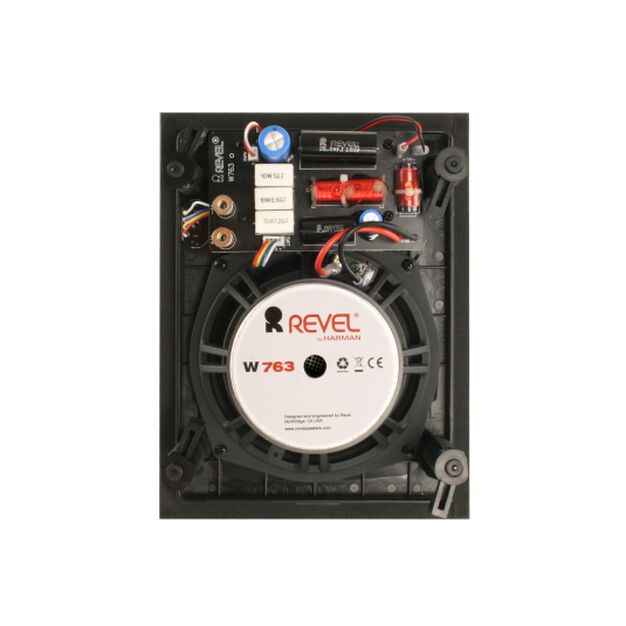

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
General Specifications
DepthMounting depth 3.6" (9.1 cm)
Weight5.4 lb (2.5 kg) / Shipping weight 6.5 lb (3.0 kg)

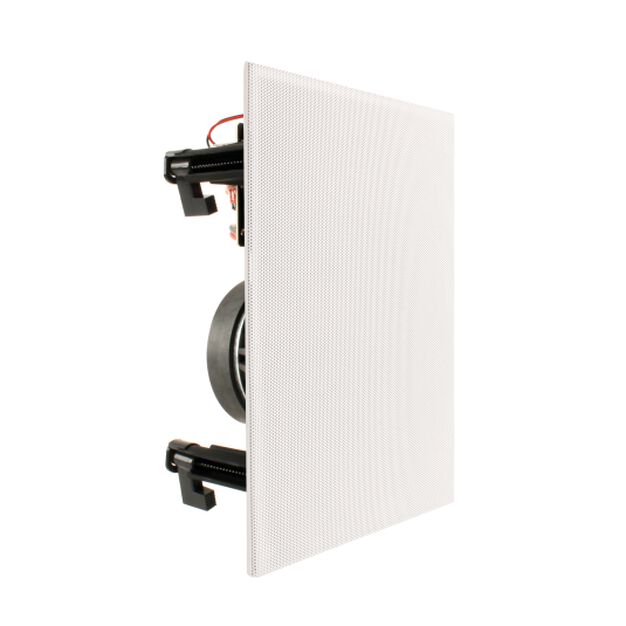

FeaturesCutout dimensions (H x W) 9.8" x 7.3" (24.9 cm x 18.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 10.8" x 8.3" (27.3 cm x 21.1 cm)
High Frequency Driver Components1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency ExtensionHigh Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Low Frequency Driver Components6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
MountingC-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)
Recommended Amplifier Power10 - 140 Watts RMS
