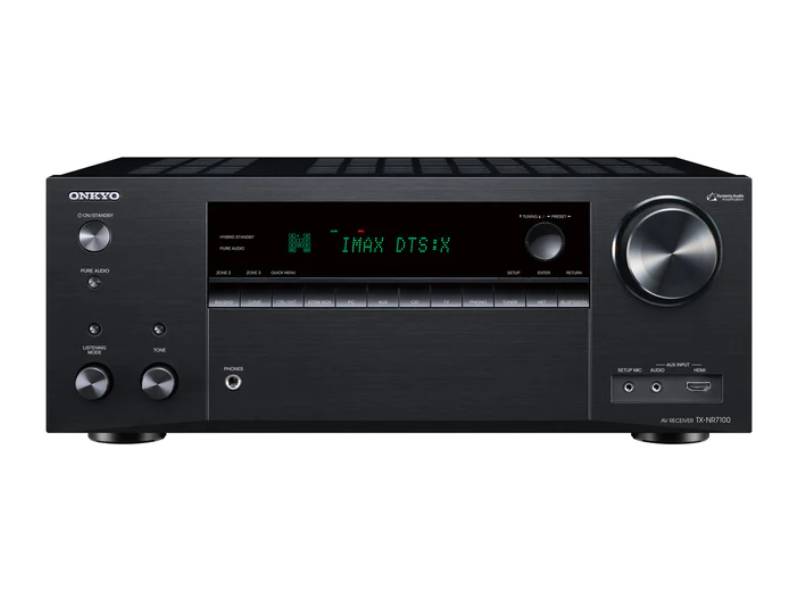

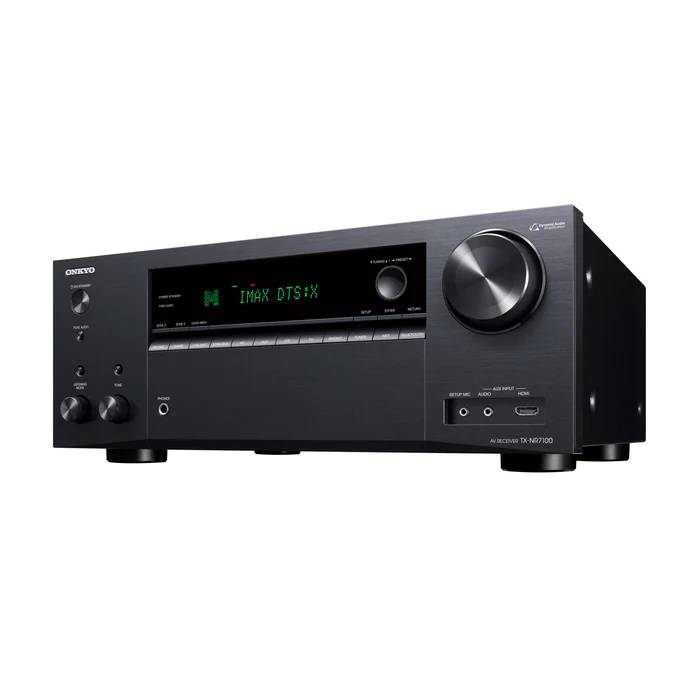

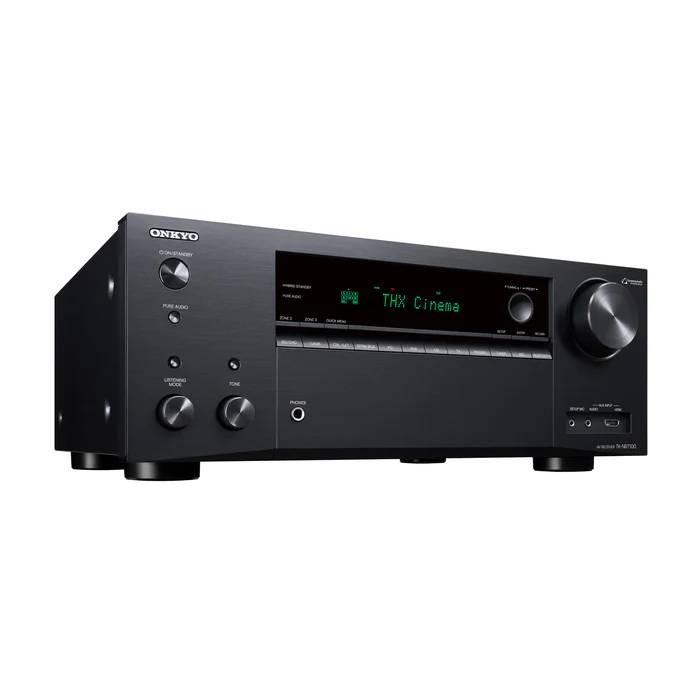

Onkyo 9.2 Channel THX Certified Network AV Receiver - TXNR7100

SKU : TXNR7100

$1,200.00
Save $599.99
Sale Ends 31st December 2024
clearance, Open Box

Literature

The first in the series to offer both 9 channels and built-in, ready-to-use DIRAC Live® Room Correction, the Onkyo TX-NR7100 9.2 Channel THX® Certified AV Receiver brings new meaning to the phrase, “home movie night.” The DIRAC Live® Room Correction offers improved musical staging, clarity, dialog, and deeper bass, while the additional two channels create a 5.1.4 Dolby Atmos® immersive surround sound experience.

Featuring three HDMI-out options, the TX-NR7100 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors. Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your home.

Amplifier
Rated RCA output level and impedance1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Input sensitivity and impedance200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
THD+N (Total Harmonic Distortion + Noise)0.08% (20 Hz–20 kHz, half power)
Dynamic power250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)
Power output (All channels)220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Frequency response10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance4–16 ohms
Tuner
FM87.5 MHz–107.9 MHz
AM530 kHz–1,710 kHz
FM/AM preset memory40 stations
General
Power supplyAC 120 V~, 60 Hz
Power consumption (operating)750 W
Power consumption (idle)75 W
Power consumption (standby)0.1 W
Dimensions (W x H x D)17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
Weight10.4 kg
UPC
UPC889951003496
Carton
Dimensions (W x H x D)21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)
Weight13.517 kg
ACCESSORIES INCLUDED
IncludedPower Cord, Indoor FM Antenna, AM Loop Antenna, Speaker Setup Microphone, Quick Start Guide, Remote Control, Two AAA Batteries
