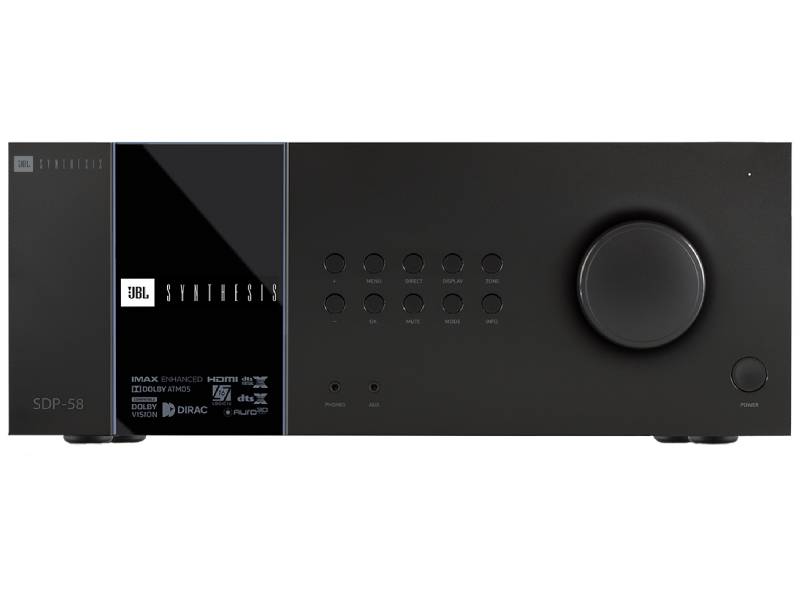

JBL 16-channel Immersive Surround Sound AV Preamplifier - SDP-58
The JBL Synthesis SDP-58 is designed to ensure exceptional performance without compromise and offers an unparalleled feature set that puts it far ahead of the competition. It features full support for Dolby ATMOS, DTS:X, and Auro-3D immersive audio formats. DIRAC Live with Bass Control room EQ with JBL Synthesis system enhancements provides exceptionally accurate system tuning. A full suite of digital and analog connectivity is included along DANTE digital audio networking and HDMI 2.1 (8K Ultra HD) AV switching with support for Dolby Vision and HDR10+ dynamic video, plus IMAX Enhanced certification. Network and Bluetooth streaming are included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect, plus it is Roon Ready with Hi-Res and MQA support. Full external control allows for complete and easy system integration.
Dolby ATMOS, DTS:X, IMAX Enhanced & Auro-3D Immersive Audio Decoding

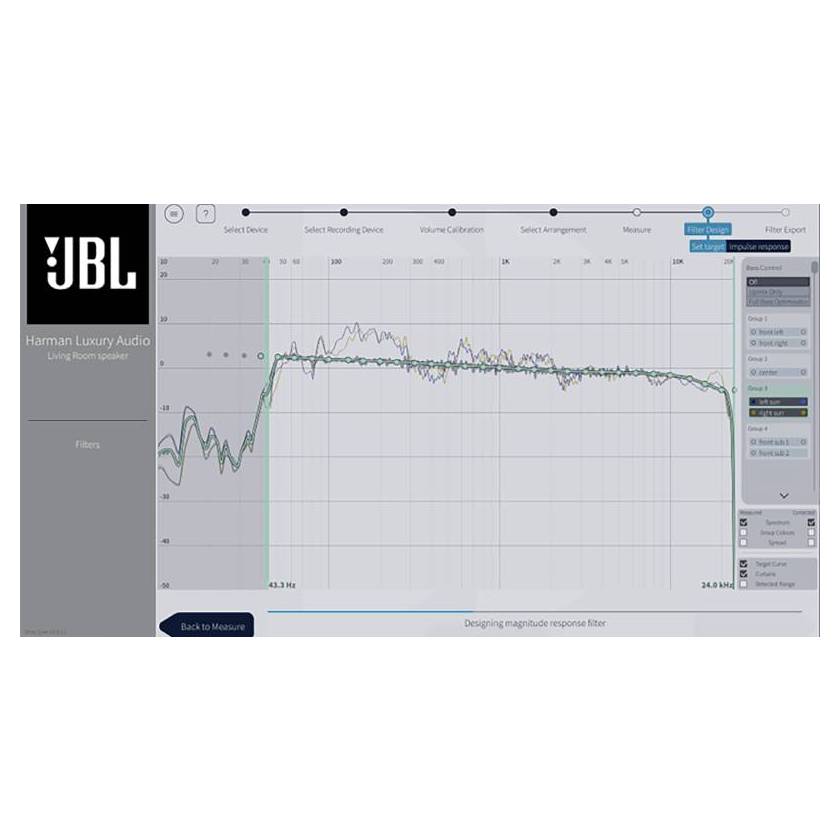

DIRAC Live with Bass Control Room EQ
HDMI 2.1 8K Ultra HD with 8 Inputs and 2 Outputs, Plus Dolby Vision and HDR10+ Compatibility
Roon Ready with Hi-Res Audio and MQA support.

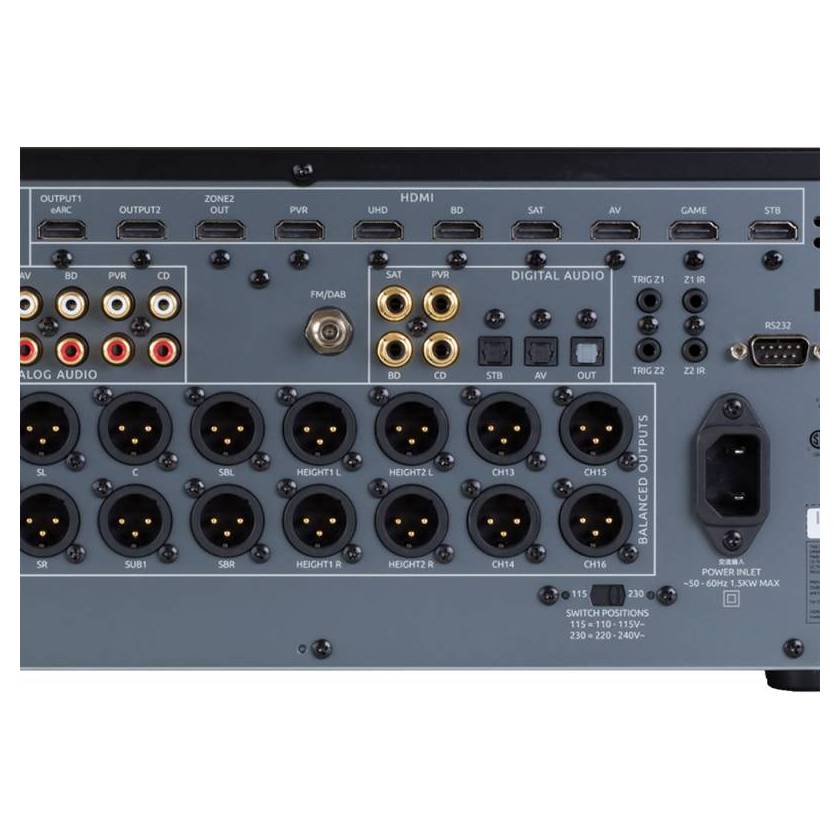

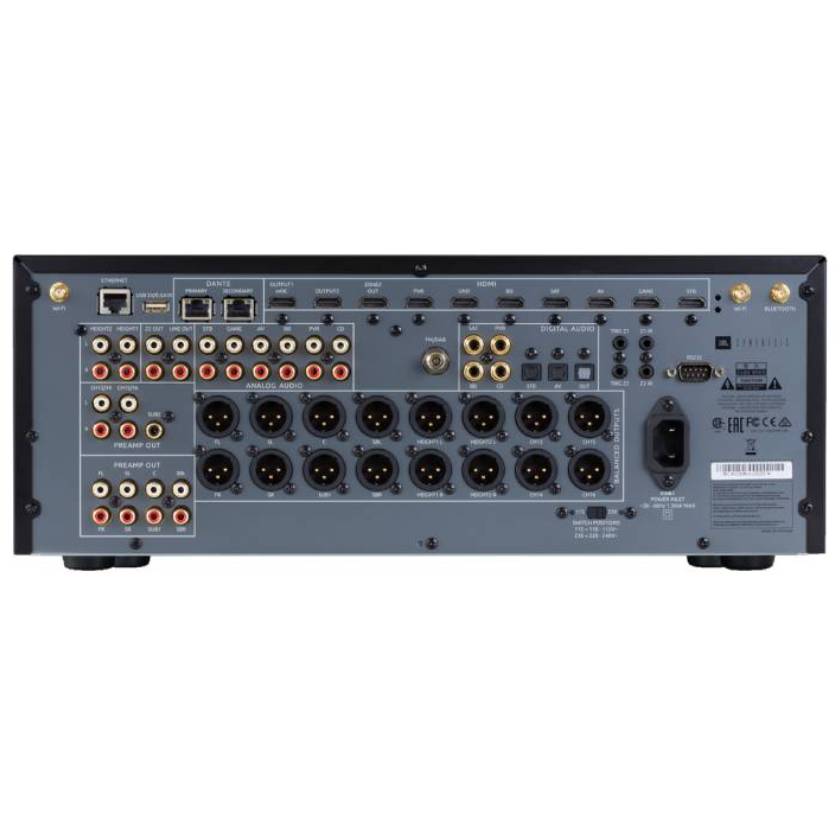

16 XLR Balanced and 16 RCA Unbalanced Analog Outputs
DANTE™ Digital Audio Networking
IMAX Enhanced Certification
Bluetooth and Network streaming included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect
| Specifications | |
|---|---|
| Maximum input | 4.5V rms |
| Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
| Input impedance | 47k |
| Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
| Frequency response | 20Hz–20kHz ± 0.1dB |
| Single-Ended nominal output level | 1V RMS (max. 5V RMS) |
| Balanced nominal output level | 2V RMS (max. 10V RMS) |
| THD N (20Hz–20kHz) | –100dB |
| Maximum output level into 32 | 5Vrms |
| Recommended headphone impedance | 16 -64 |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 50W (Thermal dissipation approx. 170 BTU/hour) |
| Power consumption (idle, typical) | 40W (Thermal dissipation approx. 170 BTU/hour) |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 433 x 425 x 171mm |
| Weight (net) | 10.7kg |
| Weight (packed) | 14.0kg |
