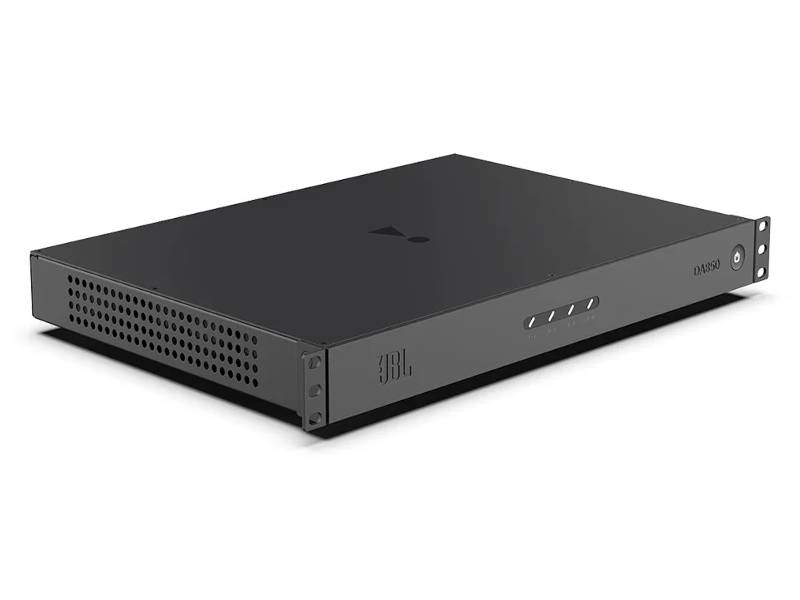

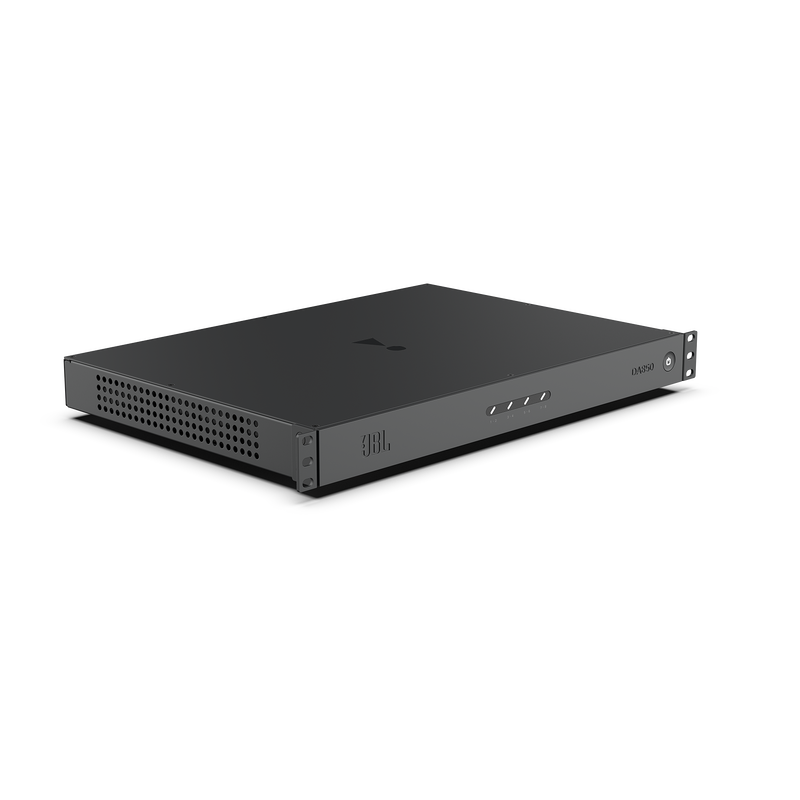

JBL 8-channel Distribution Amplifier - DA850
Engineered to work with any JBL architectural loudspeaker to deliver a fantastic high-resolution audio experience throughout the home, the DA850 provide 4 zones of audio in a compact 1U design, providing maximum performance while taking up minimal rack space. Further configurability is supported with bridging of its Class D stereo channels into even more powerful mono outputs when needed. Each zone can have an independent source or share an audio source across all zones using the global audio input. Expand zones sharing an audio source across multiple amplifiers using the global audio output.
- Compact form factor in a single rack space, flat-stackable design
- Bridgeable outputs for high-power requirements
- Over-current and thermal protection prevent potential speaker damage
Compact form factor in a single rack space, flat-stackable design
Bridgeable outputs for high-power requirements
Over-current and thermal protection prevent potential speaker damage
Three power mode control options include 12V trigger, audio sensing inputs or always on
Local and bus inputs, stereo/mono selection, and channel output level controls
| General Specifications | |
|---|---|
| Analog audio input | 8 x RCA (Single Ended) |
| Stereo analog global output (global input looped to global output) | 2 x RCA (Single Ended) |
| Speaker output | Phoenix block connectors, accommodates up to 12AWG wire |
| 12V trigger control | 1 x 3.5mm (in), 1 x 3.5mm (out) |
| Power | Standard IEC |
| Global input select | 4 x 2-position dip switches |
| Bridge/Mono select | 4 x 2-position dip switches |
| Power Mode select | 1 x 3-position switch – always on, 12V, auto sense |
| FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) | 50W |
| Rated Power (1kHz, 20ms burst, 2 channels driven, 0.5% THD max, 8Ω) | 50W |
| Rated Power (1kHz, 20ms burst, 2 channels driven, 0.5% THD max, 4Ω) | 110W |
| Rated Power (8Ω Bridged, one zone driven) | 185W |
| Frequency Response | 20Hz-20kHz +/-0.5dB, at 1/8th power, all loads |
| THD+N (max), at rated power, 20-20kHz | <0.1% |
| Signal to noise ratio (min), A-weight, 20-20kHz, 8Ω mode | >100dB |
| Crosstalk between any zones, at 1/8th power | -80dB |
| Minimum output impedance | 2.7Ω |
| Analog input impedance | 20kΩ |
| Signal sense, wake up level | 1.75 mVrms |
| Max undistorted analog input signal | 4.6 Vrms |
| Fan noise, maximum, 1/8 power | 50dBA SPL @ 1 meter |
| Power supply | Universal Mains 100–240VAC 50-60Hz |
| Standby power consumption | Less than 0.5W |
| Dimensions (H x W x D) | 1.7†x 17.2†x 12.7†(43.7mm x 436.0mm x 323.0mm) |
| Dimensions inc. feet (H x W x D) | 1.75†x 17.2†x 12.7†(44.5mm x 436.0mm x 323.0mm) |
| Net Weight | 4.5kg |
