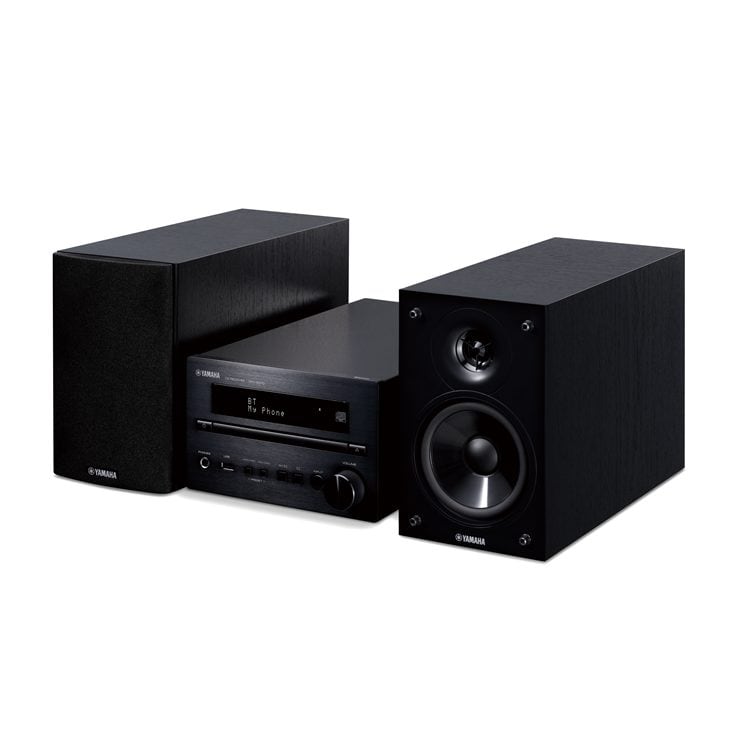

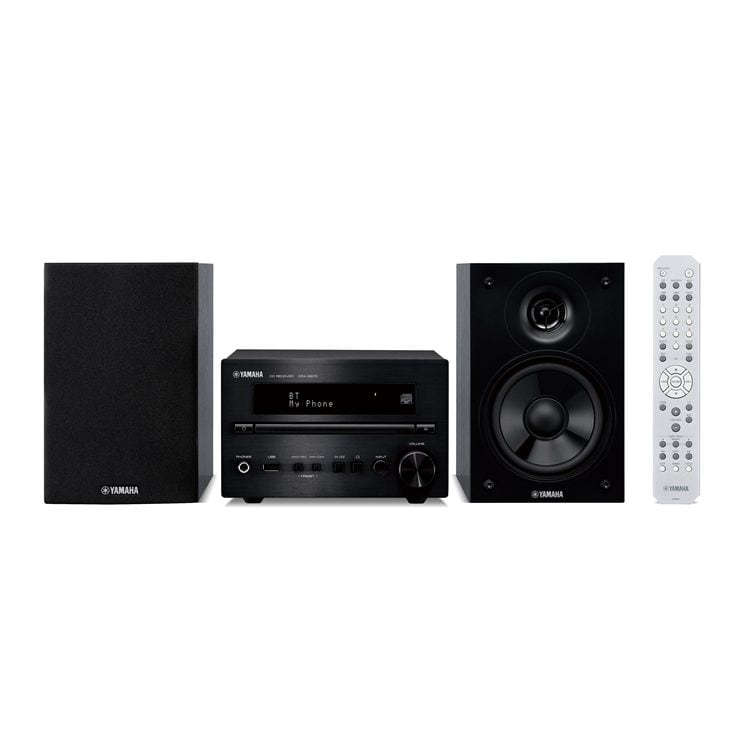

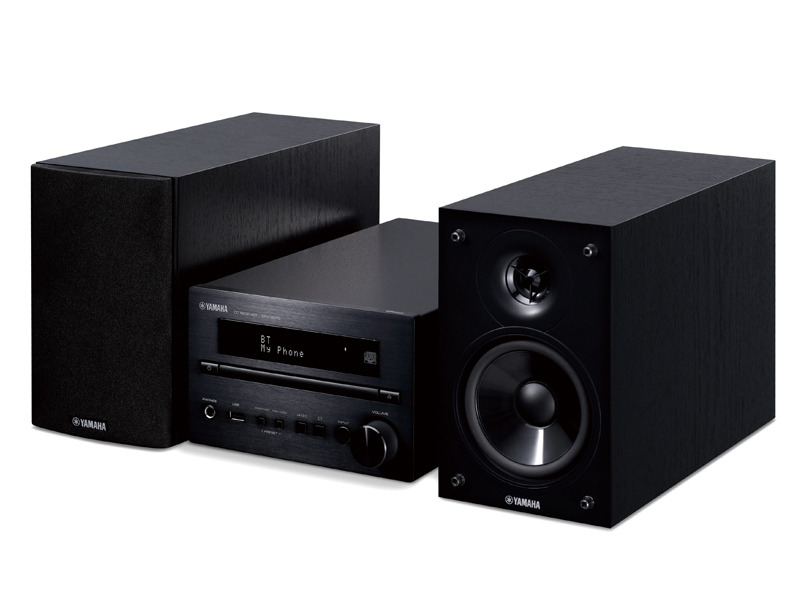

Hi-Fi authenticity in this compact unit systems from the renowned Yamaha PianoCraft range. An aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources.

  • Bluetooth® wireless audio streaming
  • Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB
  • Authentic Hi-Fi design and tuning
  • FM tuner
  • Subwoofer pre-out

Sound meets style

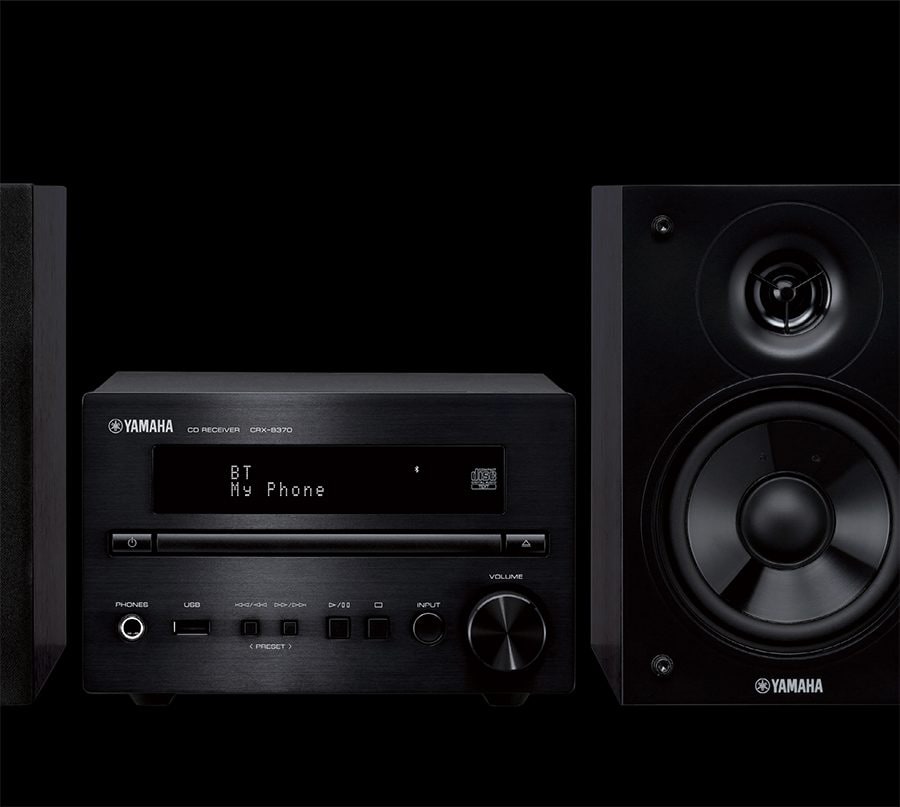

Bluetooth Wireless Streaming

Connect wirelessly via Bluetooth for quick and simple audio playback from smartphones and other Bluetooth devices. Whether listening to your favourite music streaming services on your phone or watching videos on your tablet, get the most out of your sound by streaming it to your micro Hi-Fi system.

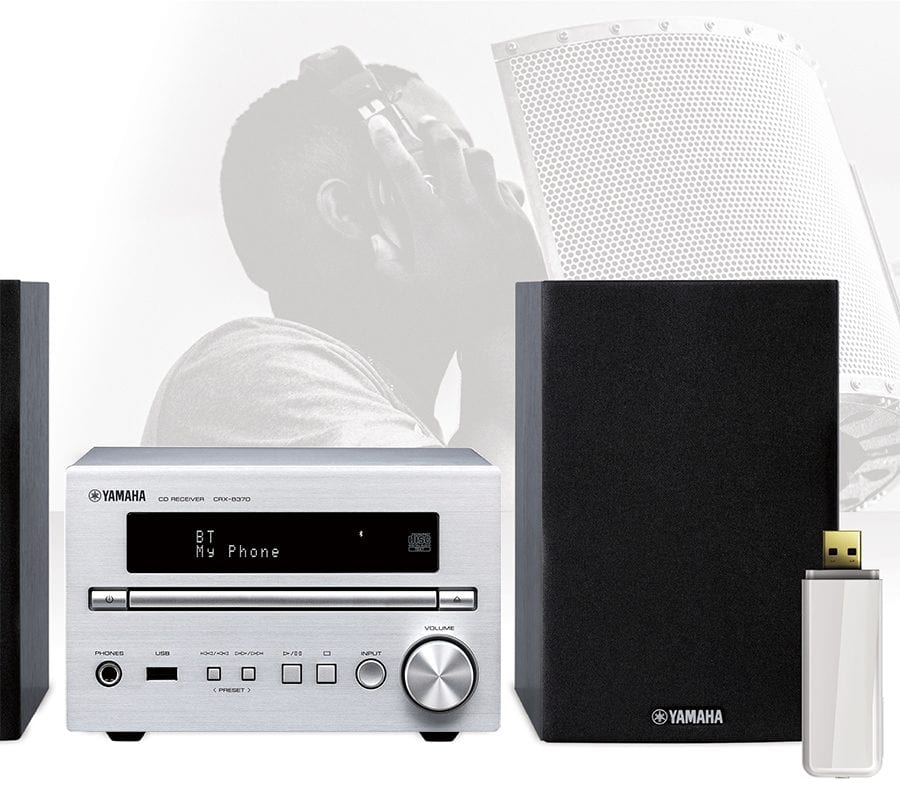

Hi-res Music from USB

Playback of 192 kHz / 24-bit FLAC and WAV files via USB reflects the Hi-Fi origins of this system. This support offers listeners the ability to experience the best in Hi-Fi listening.

PianoCraft Design

The PianoCraft series has for many years, embodied authentic Hi-Fi performance from a compact unit. Inheriting design philosophies from Yamaha Hi-Fi components ensure quality Hi-Fi performance from any PianoCraft product.

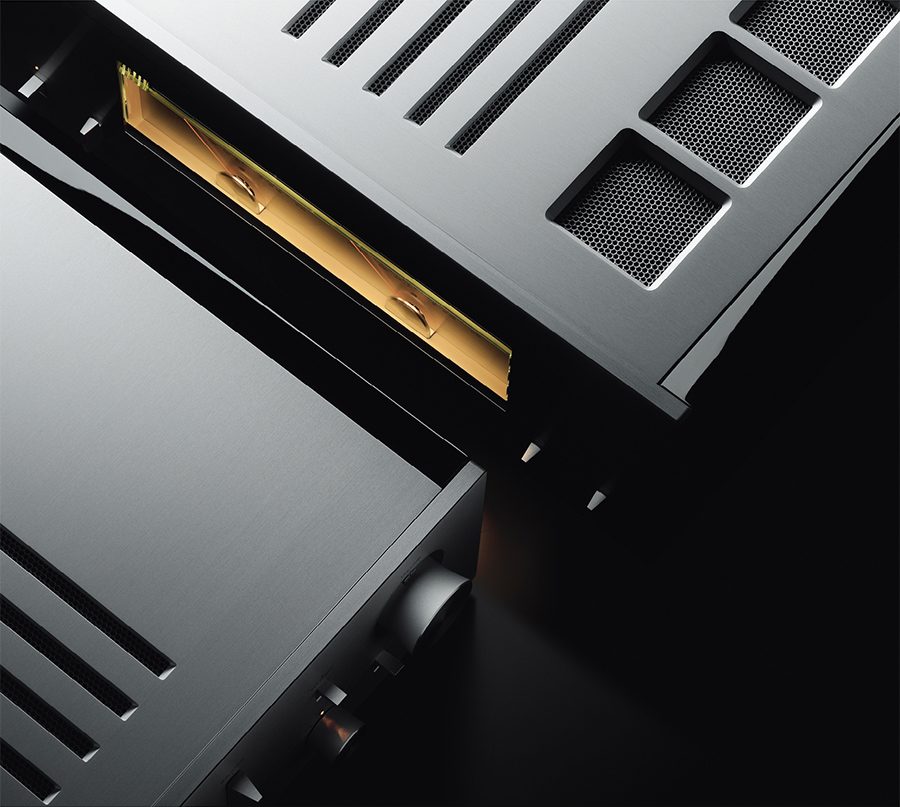

Sophisticated Appearance

The MCR-B270 maintains the design image of Yamaha Hi-Fi components - presenting an extremely high-class, sophisticated appearance.

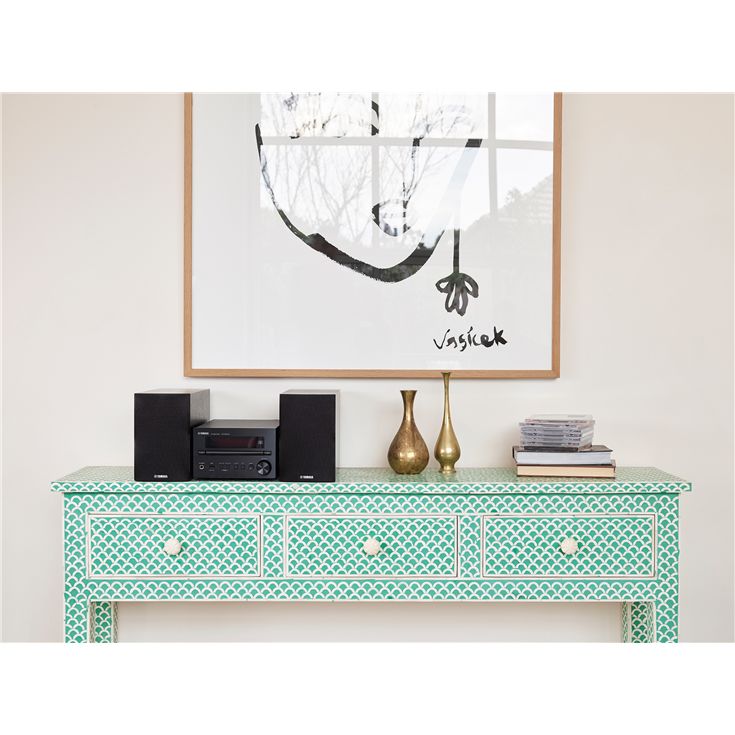

The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your room will enhance not just your listening but your home décor as well.

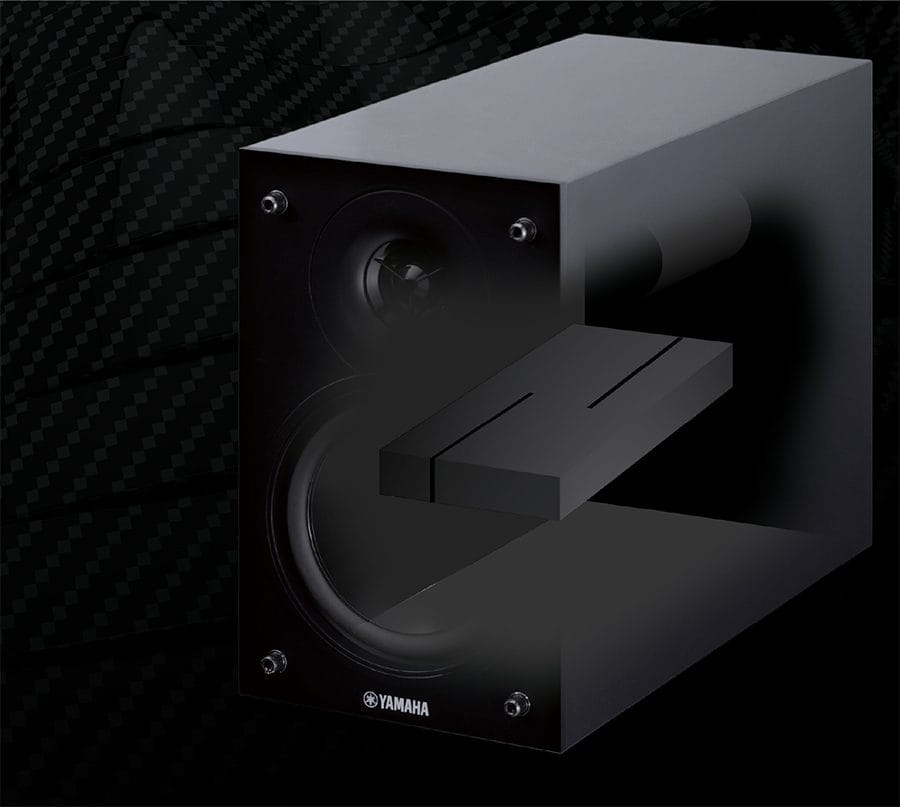

VCCS Vibration Control Cabinet Structure Technology

To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that employs strategically placed pieces of a composite material providing excellent vibration isolation performance.

Center Unit
Bluetooth Version/ProfileVer. 4.2 / A2DP, AVRCP ; [Audio Codec] SBC, AAC
Bluetooth Maximum Communication Range10 m / 32.8 ft. 10 in. (without interference)
Disc TypeCD, CD-R, CD-RW (Audio CD, MP3, WMA)
File FormatMP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit; (*2) 48 kHz / 24-bit
Preset MemoryFM x 30
Headphone JackYes (6.3 mm)

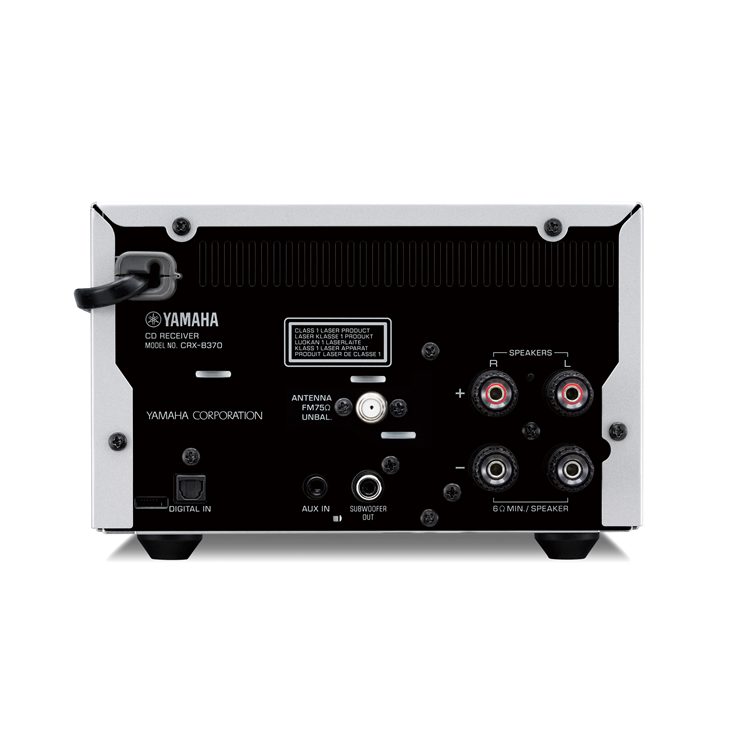

Analog Audio InputYes (3.5 mm STEREO mini Jack × 1)
Digital Audio Input: OpticalYes
Subwoofer outputYes
Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz)0.05 %
Output Power/Channel (6 ohms, 1 kHz, 10% THD)20 W + 20 W
Standby Power Consumption0.3 W (Eco standby) / 1.3 W (Bluetooth® standby on)
Dimensions (W x H x D)180 x 118 x 322 mm; 7-1/8” x 4-5/8” x 12-5/8”
Weight2.7 kg; 5.9 lbs.
Speaker System
Woofer11 cm (4-3/8") cone woofer
Tweeter2.5 cm (1") dome tweeter
Input Power (Max/Nominal)30 W (Nominal)
Frequency Response60 Hz-30 kHz
Sensitivity84 dB / 2.83 V / 1 m
Crossover Frequency6 kHz
Impedance6 ohms
Dimensions (W x H x D)123 x 192 x 298 mm; 4-7/8” x 7-1/2” x 11-3/4”
Weight2.2 kg; 4.9 lbs.
